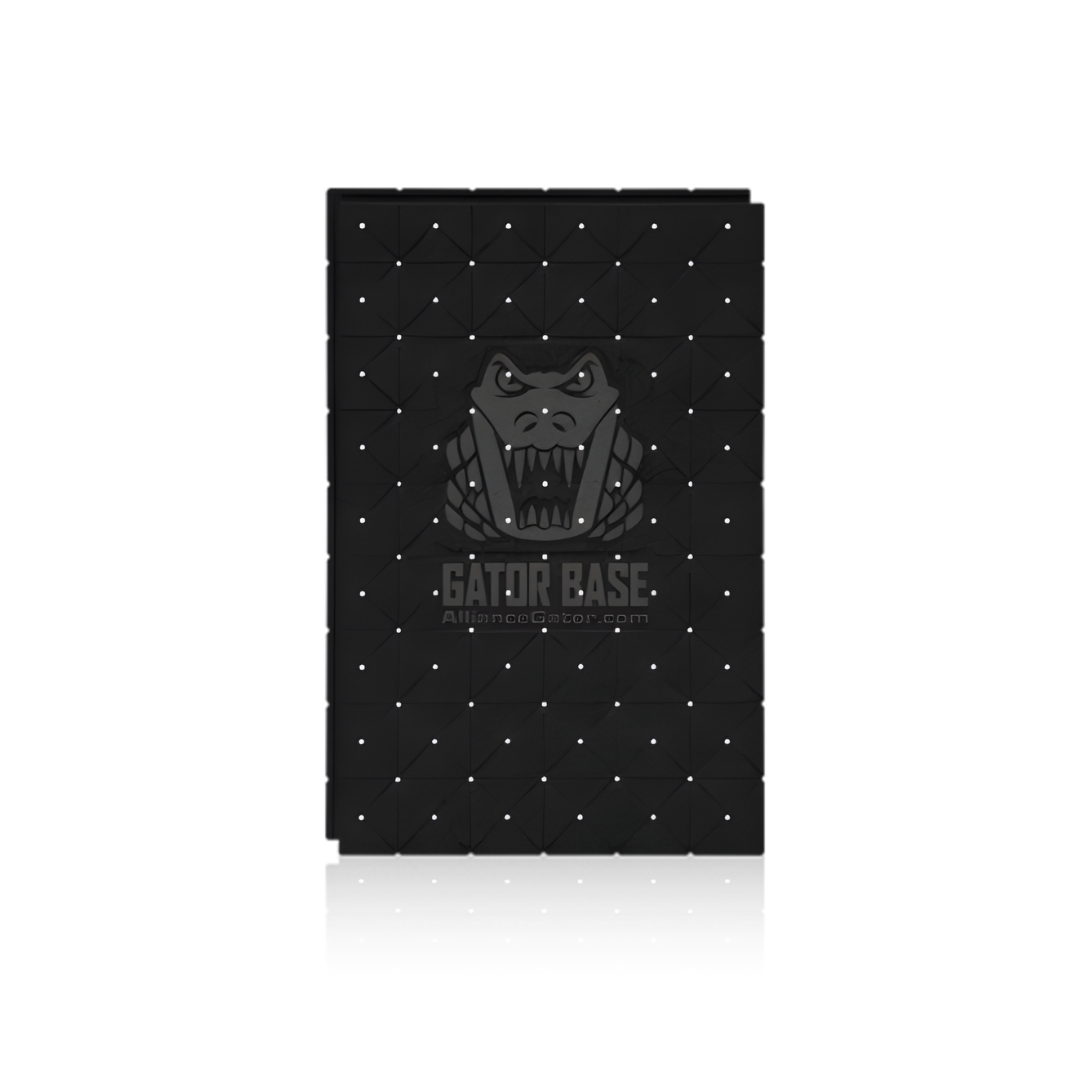

GATOR BASE 24.25″ x 36.25″ [10 units/PACK OR 120 units/SKID]

GATOR BASE 24.25″ x 36.25″ [10 units/PACK OR 120 units/SKID]

Please contact for pricing
Please contact for pricing Please contact for pricing
Sale Sold out

Size: 24.25″ x 36.25″= 6.1 sq. ft. / 61.5 cm x 92 cm= 0.566 sq. m.
Units/Pack: 10

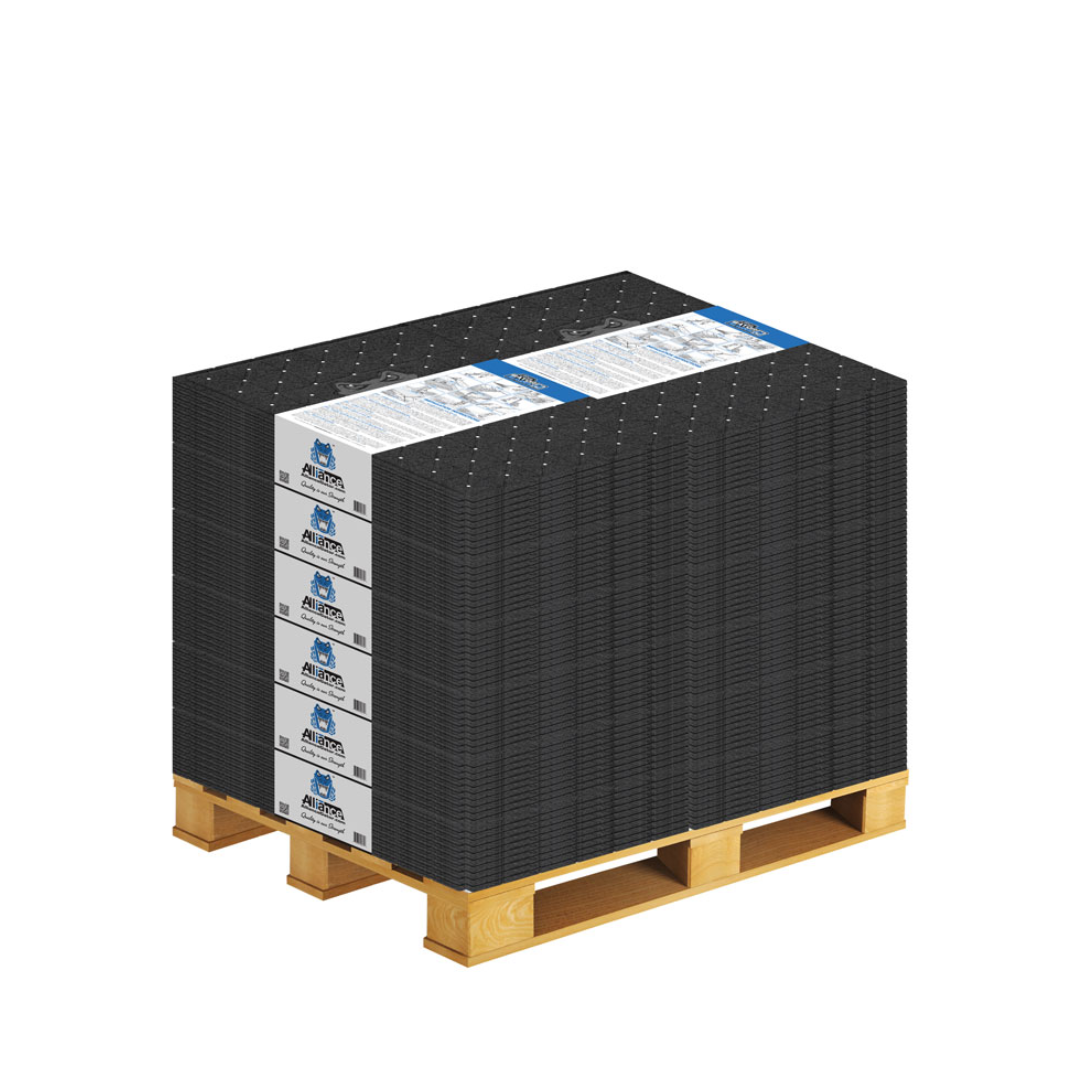

Units/ Skid: 120
*SOLD BY THE PACK AN OR/SKID

---

GATOR BASE is an evolution of foundation technology, which saves you time, labor and money. It is manufactured for pedestrian applications such as: patios, pool decks, walkways, 18” (45 cm) seating walls, fire pits and heated paving system, allowing you to clearly define your spaces and highlight the focal points of the dream staycation area. Designed with a tongue and grove system, GATOR BASE is easy to install. A single GATOR BASE panel is also equivalent to 130 kg (288 lb) of crushed stone, saving you a minimum of 6 in (15 cm) of additional excavation. The GATOR BASE drains water through channels and is made from lightweight, high density polypropylene. Environmentally friendly, GATOR BASE is 100% recyclable, extremely durable and GATOR BASE does not degrade in the soil when buried.

Ideal for:

Use for small or large pedestrian projects such as:

  • Patios, sidewalks, walkways, paths and pool surrounds
  • 18” (45 cm) seating walls, fire pits and heated paving system
  • Concrete pavers, natural or wet cast stones
  • Porcelain tiles and slabs, see Gator Tile system

Features

  • Save 6″ (15 cm) of additional excavation
  • Save 6″ (15 cm) of compacted crushed stone
  • 50% savings on the costs of soil excavation
  • Save the cost of truck and driver on the road
  • Reduces costly unloading and dumping fees
  • Reduces labor costs by a minimum of 20%
  • Reduces wear and tear on machinery
  • Reduces overall installation time
  • Easy to use, install and transport
  • Reduces unnecessary excavation
  • Project completed faster and easier
  • Insulating capacity of R-3.6, which acts as a thermal blanket
  • Gator Base panels help transfer dynamic and static loads
  • Helps to combat the labor shortage
  • Take Note: For pedestrian use only

Coverage

Coverage per Gator Base Unit

Total area 24.25″ x 36.25″= 6.1 sq. ft. / 61.5 cm x 92 cm= 0.566 sq. m.

Usable surface 23.5″ x 35.5″= 5.79 sq. ft. / 59.5 cm x 90 cm= 0.536 sq. m.

Packaging

Product Size Units per Pack Units per Pallet
GATOR BASE 24.25″ x 36.25″= 6.1 sq. ft. / 61.5 cm x 92 cm= 0.566 sq. m. 10 120
